GL600S Crawler Type Water Well Drill/Drilling Rig for 600m Depth and 105-500mm Diameter6 G

1
MOQ
negotiable
harga
GL600S Crawler Type Water Well Drill/Drilling Rig for 600m Depth and 105-500mm Diameter6 G
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Nama: Mesin Rig Bor Sumur Air DTH Tipe Crawler GL600S Untuk Lubang Bor
Kata kunci: Mesin Rig Bor Untuk Lubang Bor
Kedalaman: 600m
Diameter pengeboran: 105-500mm
Tekanan udara: 1.05-4.5mpa
Panjang batang: 3m,6m
Batang bor dia.: 89-102-114mm
Kekuatan pengangkat: 35t
Mesin: 176kw
Dimensi: 5800*2200*2550mm
Menyoroti:

crawler type water well drill

,

600m depth water well rig

,

105-500mm diameter drilling rig
Informasi dasar
Tempat asal: Tiongkok
Nama merek: Glorytek
Sertifikasi: CE
Nomor model: GL600S
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Pengemasan Pengekspor Standar
Waktu pengiriman: 20 hari
Syarat-syarat pembayaran: T/T, L/C, Western Union, MoneyGram, D/P, D/A.
Menyediakan kemampuan: 40 set/bulan
Deskripsi Produk

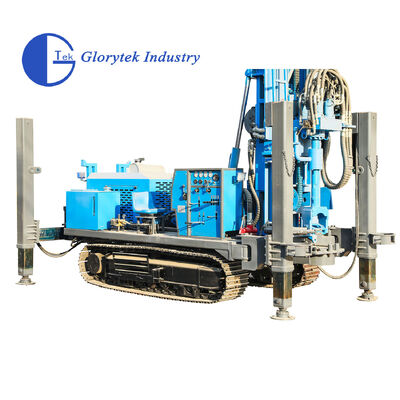

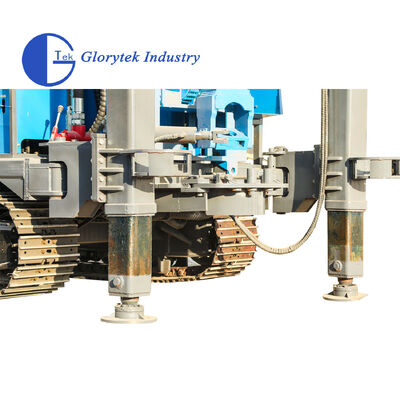

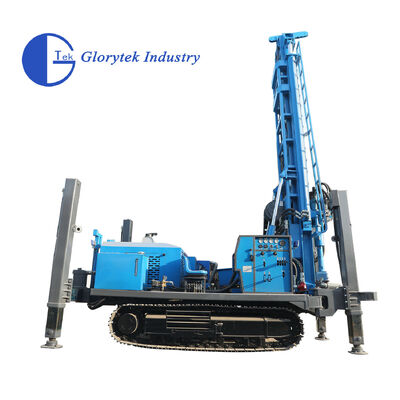

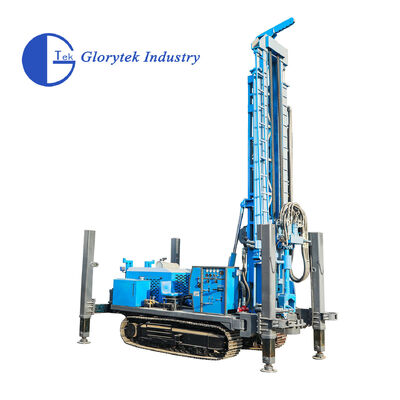

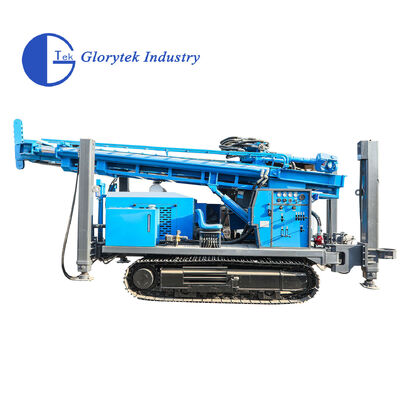

GL600S Crawler Type Water Well Drill/Drilling Rig for 600m Depth and 105-500mm Diameter
GL600S Track Mounted DTH Water Well Drill Rig Machines For Borehole
The GL600S crawler water well drill rig machine is designed for geothermal, industrial, and agricultural drilling applications. Featuring a durable steel crawler chassis for easy mobility and a powerful 176kw diesel engine, this rig delivers exceptional drilling capacity.
Technical Specifications
Parameter Value
Max Drilling Depth (m) 600
Drilling Diameter (mm) 105-500
Air Pressure (Mpa) 1.05-4.5
Air consumption 16-60m³/min
Rod Length (m) 3.0 / 6.0
Rod Diameter (mm) 89-102-114
Main Shaft Pressure (T) 14
Lifting Force (T) 35
Fast lifting speed 24m/min
Rotary Torque (N.m) 13000
Rotary Speed (r/min) 30/170
Winch Lifting Force (T) 5
High leg stroke (M) 1.5-1.65
Moving Speed (km/h) 3.5
Uphill Angle (°) 21
Weight of the Rig (T) 13
Engine 191KW
Overall Dimensions (MM) 5800*2200*2550
Working Condition loose layer or bedding rock
Drilling Method Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling
GL600S Crawler Type Water Well Drill/Drilling Rig for 600m Depth and 105-500mm Diameter6 G 0
GL600S Crawler Type Water Well Drill/Drilling Rig for 600m Depth and 105-500mm Diameter6 G 1
GL600S Crawler Type Water Well Drill/Drilling Rig for 600m Depth and 105-500mm Diameter6 G 2
Customer Visiting
GL600S Crawler Type Water Well Drill/Drilling Rig for 600m Depth and 105-500mm Diameter6 G 3
Company Profile
About Glorytek Industry
Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. Supported by an experienced R&D team and engineers, we successfully complete projects according to clients' requirements. As an important member of "Sundrill Corporation," our 250,000 square meter facility includes machining machinery, CNC processing centers, friction welding machines, and testing equipment. With over 200 sets of equipment and 600 employees, our products have been exported to more than 60 countries worldwide.
Warranty Information
For drill rig main parts, if quality issues are confirmed, we provide free replacement within one year after shipping.
