GL350S Crawler Water Well Drill/Drilling Rig for 350m Drilling Depth and 105-325mm Hole Diameter

1
MOQ
negotiable
harga
GL350S Crawler Water Well Drill/Drilling Rig for 350m Drilling Depth and 105-325mm Hole Diameter
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Nama: Peralatan Pengeboran Lubang Bor/Rig Pengeboran Tipe Perayap Hidraulik Sepenuhnya Kedalaman 350m
Kata kunci: Rig Pengeboran/Pengeboran Sumur Air
Kedalaman: 350M
Diameter pengeboran: 105-325mm
Tekanan udara: 1,25-3,5Mpa
Panjang batang: 3m/6m
Batang bor dia.: 76/89/102mm
Kekuatan pengangkat: 26T
Berat rig: 8.5T
Dimensi: 5,9mx 1,8mx 2,3m
Informasi dasar
Tempat asal: Tiongkok
Nama merek: Glorytek
Sertifikasi: CE
Nomor model: GL350S
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Pengemasan Pengekspor Standar
Waktu pengiriman: 20 hari
Syarat-syarat pembayaran: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Menyediakan kemampuan: 40 set/bulan
Deskripsi Produk

GL350S Fully Hydraulic Crawler Type Borehole Drill Rig

Description:

The GL350S water well drilling rig has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate.

nce launched, it has been recognized by the market and has been widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields.

It is capable of walking on different kinds of roads and easy to move.The stainless steel track is reinforced and the climbing ability is stronger.



Tehnical Parameter:





Technical Parameter
Max drilling depth 350m
Drilling diameter 105-325mm
Air pressure 1.25-3.5Mpa
Air consumption 16-55m³/min
Rod length 3m/6m
Rod diameter 76/89/102mm
Main shaft pressure 6T
Lifting force 26T
Fast lifting speed 24m/min
Fast forwarding speed 50m/min
Rotary torque 9900 N.M
Rotary speed 30/170r/min
Winch lifting force 1.5T
High leg stroke 1.5m
Drilling efficiency 10-35m/h
Moving speed 2.5Km/h
Uphill angle 21°
Weight of the rig 8.5T
Dimension 5.9m x 1.8m x 2.3m
Working condition loose layer or bedding rock
Drilling method

Top Hammer Hydraulic Rotating and feeding,

Down the hole hammer or mud pump drilling

Suitable hammer Medium and high pressure DTH hammer
Optional accessories Mud pump, centrifugal pump, generator, foam pump
Diesel Engine 90KW

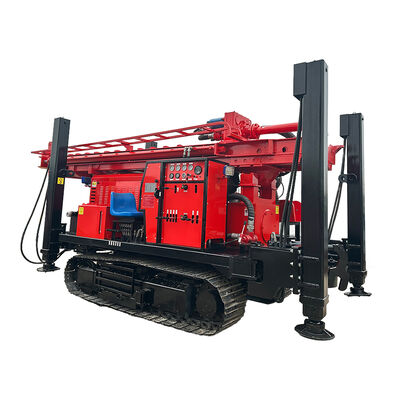

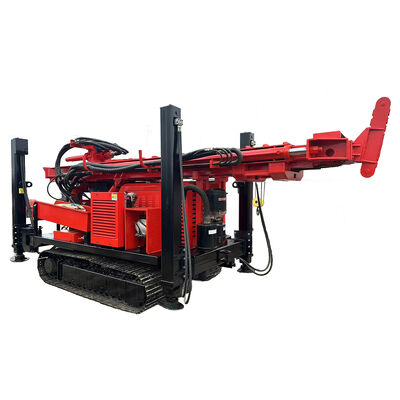

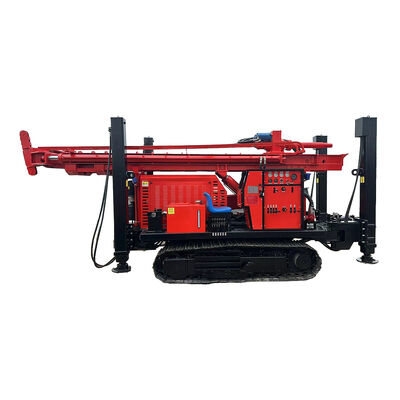

GL350S Crawler Water Well Drill/Drilling Rig for 350m Drilling Depth and 105-325mm Hole Diameter 0GL350S Crawler Water Well Drill/Drilling Rig for 350m Drilling Depth and 105-325mm Hole Diameter 1GL350S Crawler Water Well Drill/Drilling Rig for 350m Drilling Depth and 105-325mm Hole Diameter 2



Company Profile



GL350S Crawler Water Well Drill/Drilling Rig for 350m Drilling Depth and 105-325mm Hole Diameter 3

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

GL350S Crawler Water Well Drill/Drilling Rig for 350m Drilling Depth and 105-325mm Hole Diameter 4



We have attended many exhibitions to showcase our products.



GL350S Crawler Water Well Drill/Drilling Rig for 350m Drilling Depth and 105-325mm Hole Diameter 5
