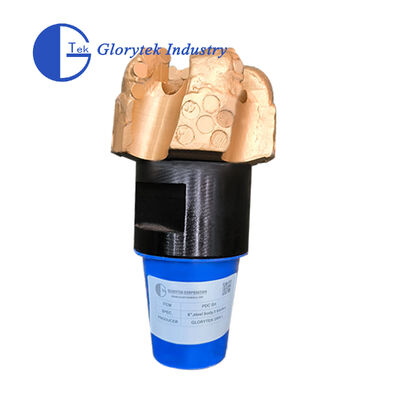

Advanced 6" PDC Drill Bit 5 Blades Steel or Matrix Body for Hard and Abrasive Rocks

1 buah
MOQ
negotiable
harga
Advanced 6" PDC Drill Bit 5 Blades Steel or Matrix Body for Hard and Abrasive Rocks
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Disesuaikan:: Disesuaikan
Keuntungan: Efisiensi Tinggi, Tahan Aus
Hubungkan utas: API atau Reg atau Disesuaikan
Bahan:: baja dan matriks
Ukuran yang Tersedia: 2 7/8 - 26 inci
Industri yang Berlaku: sumur air, sumur minyak dan HDD
Ukuran Pisau: 6-12 inci
Formasi: Formasi lunak hingga sedang
Blade yang tersedia No: berdasarkan diameter Anda
Informasi dasar
Tempat asal: Cina
Nama merek: Glorytek
Nomor model: 6''
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Paket yang layak laut
Waktu pengiriman: 20 hari
Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan: 4000 buah per bulan
Deskripsi Produk
Advanced 6" PDC Drill Bit 5 Blades Steel or Matrix Body for Hard and Abrasive Rocks
Product Overview

PDC drill bits are advanced drilling tools used in the oil and gas industry to penetrate challenging rock formations. These bits feature a cutting structure with synthetic diamond inserts called polycrystalline diamond compact (PDC) cutters, offering exceptional stability and directional control capabilities, making them ideal for directional drilling applications.

Advanced 6" PDC Drill Bit 5 Blades Steel or Matrix Body for Hard and Abrasive Rocks 0
Technical Specifications
Bit Type 6" 8-1/2" 8-1/2" 12-1/4" Bit Type 17-1/2" GM1606T
IADC Code M423 M432 M332 M323 IADC Code M432 M332
Blade 5 6 8 6 Blade 6
Cutter Size (mm) Φ13MM Φ16MM Φ13MM Φ16MM Cutter Size (mm) Φ16MM;Φ13MM
Nozzle Qty/Type 5 13.2 9.6 30.78 Cutter Qty Φ16*58;Φ13*81
Nozzle Qty/Type 3NZ 6NZ 4NZ 6NZ Nozzle Qty/Type 8NZ
Gauge Length 1.5" 2.2" 2" 2.5" Gauge Length (mm) 110
Connection 3-1/2" API REG 4-1/2" API REG 4-1/2" API REG 6-5/8" API REG Connection 7-5/8" API REG
Make up Torque(KN.m) 10.4~11.4 24.1~26.5 24.1~26.5 51.7~56.9 N.W./ G.W.(KG) 338/388
Rotary Speed(rpm) 60-260 60-260 60-260 60-260 Nozzle Size (inch) 10/32
Weight on Bit(KN) 8-50 20-100 20-100 30-140 Rotary Speed(Rpm) 60-260
Max.WOB(KN) 90 130 130 180 Weight On Bit(KN) 30-200
Flow Rate(lps) 10-30 22-35 22-35 38-70 Max.WOB (KN) 240
Flow Rate(lps) 45-80
Manufacturer Profile

Glorytek Industry (Beijing) Co., Ltd, located in Beijing, China, is an integrated corporation specializing in manufacturing and exporting top-quality drilling equipment and drilling parts for decades. We are supported by a highly experienced team of designers and engineers that enable us to successfully complete all assigned projects according to our clients' specific requirements.

Our products are widely used in mining, water well drilling and exploration, anchor grouting projects, slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations for seaport channels, hydropower projects, and national defense projects.

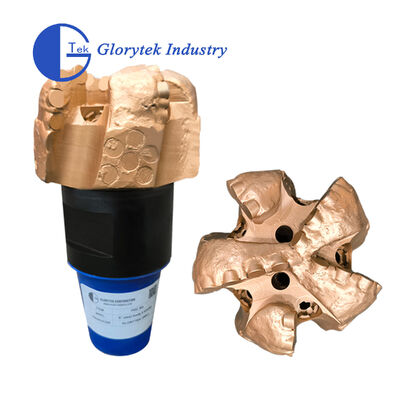

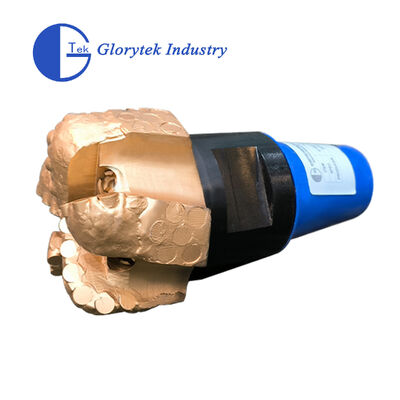

Advanced 6" PDC Drill Bit 5 Blades Steel or Matrix Body for Hard and Abrasive Rocks 1 Advanced 6" PDC Drill Bit 5 Blades Steel or Matrix Body for Hard and Abrasive Rocks 2
After-Sales Warranty
  • Free replacement for any problems caused by quality issues
  • Timely after-sales assistance provided at all times
Frequently Asked Questions
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply a full set of drilling tools, including drill pipe, tricone bits, PDC bits, drag bits, and DTH Hammers. We also provide drilling equipment like rigs, mud pumps, and air compressors.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, with 70% remaining payment before shipping by T/T. For small orders, we accept 100% advance payment after purchase order by T/T.
Q: How is your delivery time?
A: Delivery time depends on your purchasing quantity. Normally we can deliver within 3-5 days.
Q: How can you ensure the quality?
A: We have professional quality control, and all products undergo strict inspection and testing for every order before shipping.
