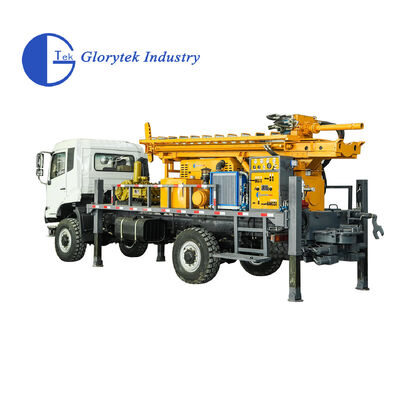

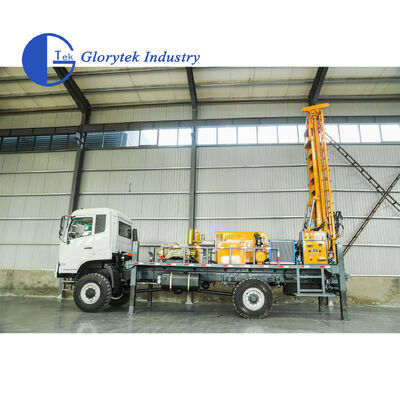

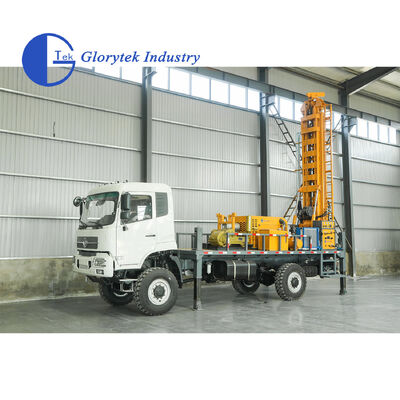

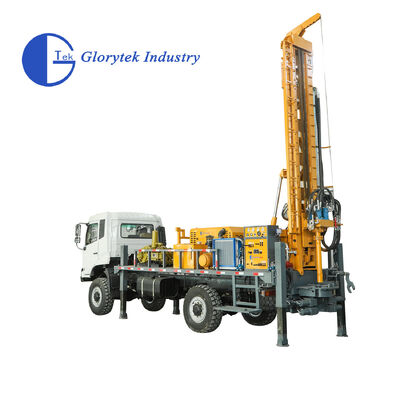

500m Depth Full Hydraulic 4X4 Truck Mounted Borehole Water Well Drilling Rig With Bw650 Mud Pump

1set
MOQ
negotiable
harga
500m Depth Full Hydraulic 4X4 Truck Mounted Borehole Water Well Drilling Rig With Bw650 Mud Pump
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Model: GL500T
Jenis: Pengeboran sumur air
Diameter lubang bor: 105-350mm
Kedalaman pengeboran: 500M
Tekanan Udara Kerja: 1.05-4.5mpa
Konsumsi udara: 16-60m²/mnt
Kapasitas yang melayang: 28T
Stroke makan: 6600mm
Kecepatan putar: 75-150rpm
Torsi Putar: 13000-15000N.M
Tenaga Mesin: 194KW
Berat Total: 16800kg
Panjang pipa bor: 3M-6M
Ukuran: 8300x2500x3150mm
Informasi dasar
Tempat asal: Cina
Nama merek: Glorytek
Sertifikasi: SGS, CE, TUV
Nomor model: GL500T
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Pengemasan Pengekspor Standar
Waktu pengiriman: 45 hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 20 Set/bulan
Deskripsi Produk
Truck Mounted Water Well Drilling Rig Product Description: The GL500T water well drilling rig is a high-performance machine suitable for medium-to-large-scale drilling projects. Its technical specifications include a drilling diameter range of 105-350 mm, meeting drilling requirements in diverse geological conditions. Its maximum drilling depth reaches 500 meters, making it suitable for deep well operations. The rig operates with an air pressure of 1.05-4.5 MPa and air
