Full Hydraulic Truck Water Well Drilling Rig, 500m Depth, 105-350mm Diameter Range

1Set
MOQ
negotiable
harga
Full Hydraulic Truck Water Well Drilling Rig, 500m Depth, 105-350mm Diameter Range
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
model: GL500T
Jenis: Pengeboran sumur air
Diameter lubang bor: 105-350mm
Kedalaman pengeboran: 500M
Tekanan Udara Kerja: 1.05-4.5mpa
Konsumsi udara: 16-60m²/mnt
Kapasitas yang melayang: 28T
Stroke makan: 6600mm
Kecepatan putar: 75-150rpm
Torsi Putar: 13000-15000N.M
Tenaga Mesin: 194KW
Berat Total: 16800kg
Panjang pipa bor: 3M-6M
Ukuran: 8300x2500x3150mm
Menyoroti:

Full Hydraulic Water Well Drill Rig

,

500m Depth Water Well Drill Rig

,

105-350mm Diameter Water Well Rig
Informasi dasar
Tempat asal: Tiongkok
Nama merek: Glorytek
Sertifikasi: SGS, CE, TUV
Nomor model: GL500T
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Pengemasan Pengekspor Standar
Waktu pengiriman: 45 Hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 20 Set/bulan
Deskripsi Produk

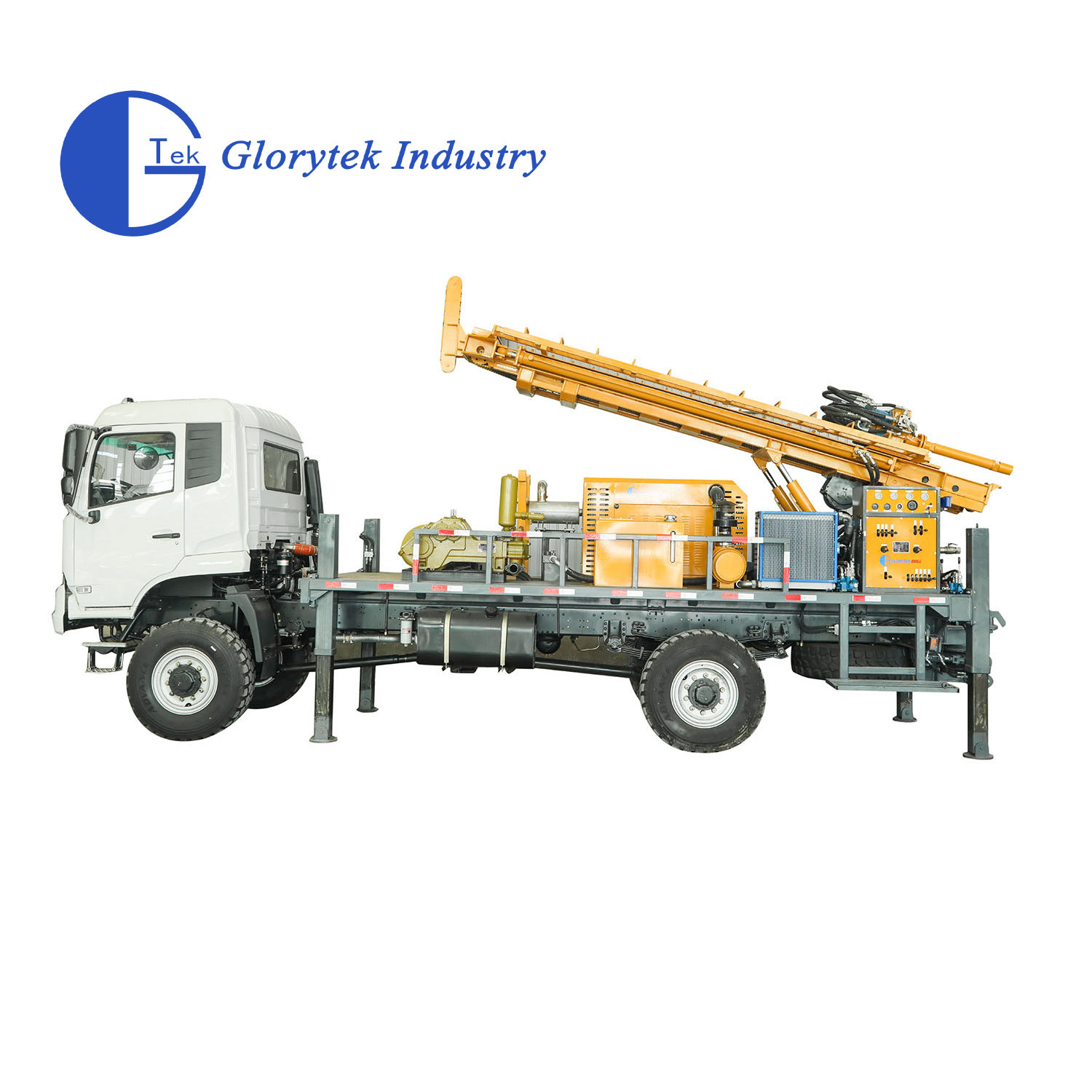

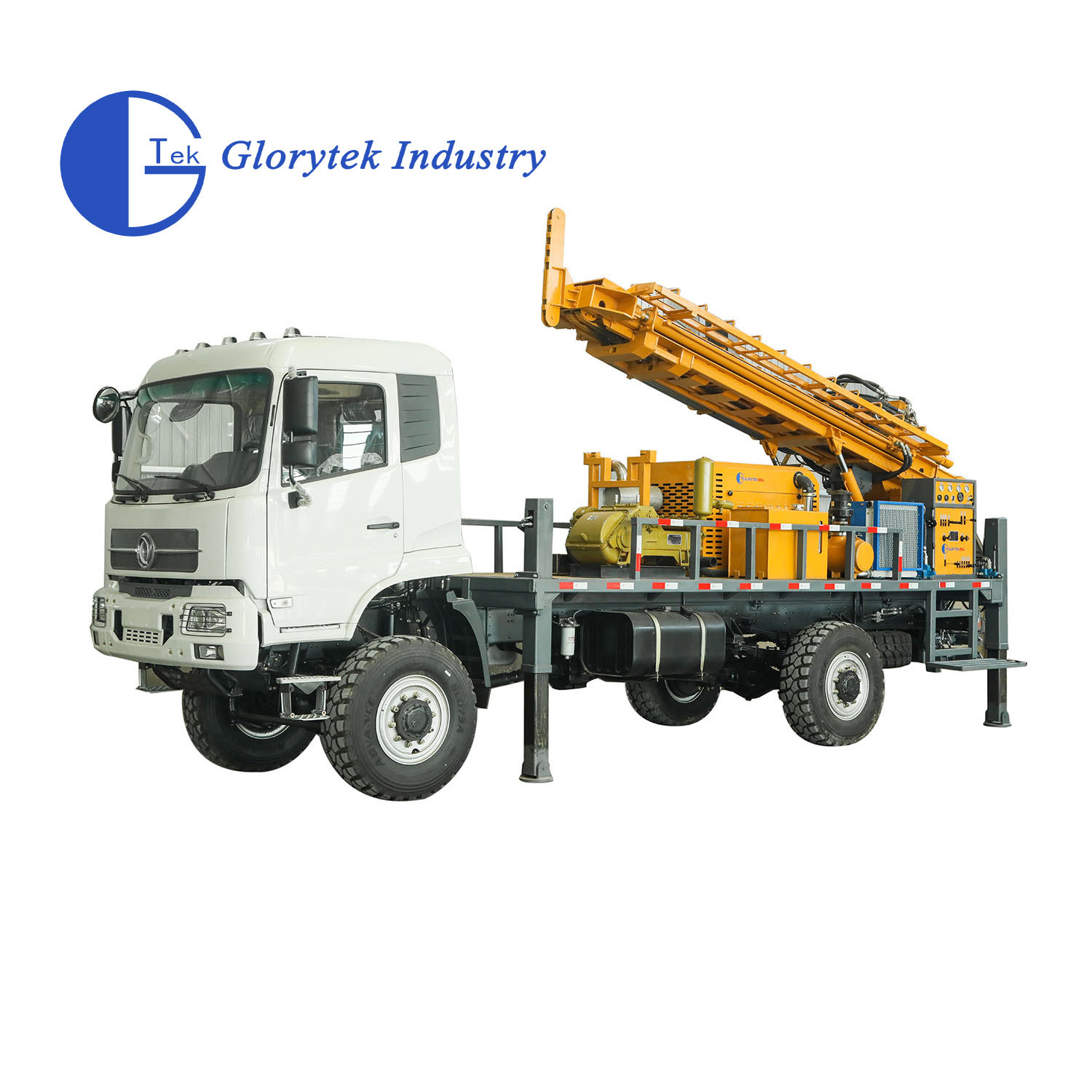

Product Overview The GL500T water well drilling rig is a high-performance, truck-mounted machine engineered for medium-to-large-scale drilling projects. It handles a drilling diameter range of 105–350 mm, meeting the demands of diverse geological conditions, and reaches a maximum drilling depth of 500 meters for deep well operations. The rig operates at an air pressure of 1.05–4.5 MPa with air consumption of 16–60 m³/min. It delivers a lifting capacity of 28 tons and a feed
